PHS Medical Solutions · PT1101–PT1177

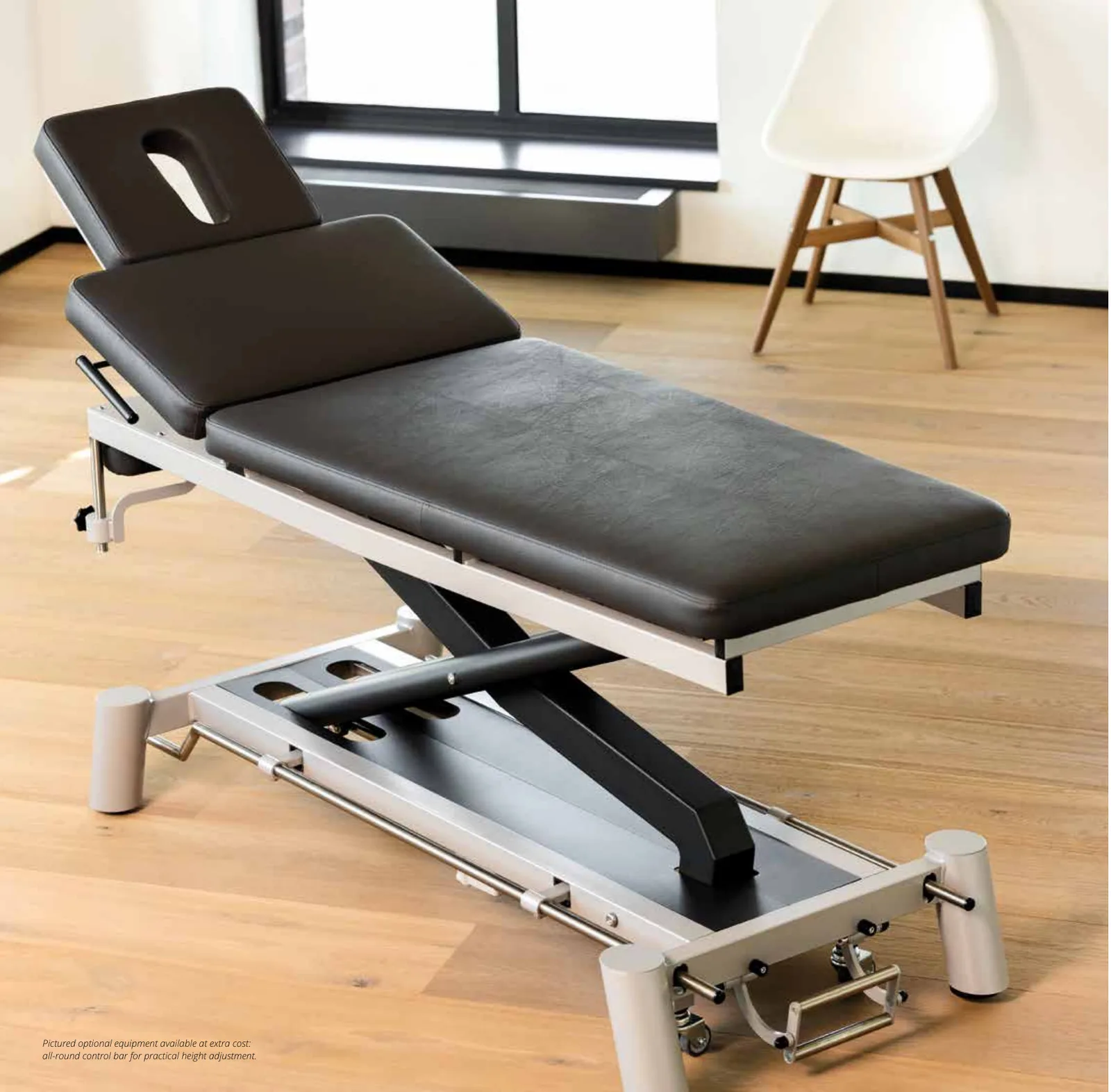

PINO XPERT+ Therapy Table
Model: 48080
PINO's premium electric therapy table with a narrow, shape-optimised frame for ergonomic work, height adjustment from 52 to 96 cm in 16 seconds and a 250 kg load capacity.
Supplied from Dubai · Delivery & installation across the UAE · +971 4 388 3891
Specifications
- Height range
- 52-96 cm (electric, 16 s)
- Load capacity
- 250 kg
- Padding widths
- 65 cm or 80 cm (48453)
- Standard headrest
- One-piece with nose slot, –90° to +30°
- Optional headrests
- MOVE four-part 48386; three-part 48383; FIX three-part 48384; FLEX three-part 48385; extra-long with hinged back 48388
- Other options
- Two-part surface with adjustable footrest 48380; two-part surface with adjustable backrest 48381; heated lying surface 48382 (bed then loses medical-device status); all-round control bar 48452; foot-operated lever 48154; oval nose slit 48121; 10 cm comfort padding 48454; protective mat 40845
Overview
The PINO XPERT+ combines sophisticated design with maximum functionality. Its narrow frame and tapered foot area let the therapist work close to the patient in an ergonomic posture, and the shape-optimised lying surface supports manual therapy, physiotherapy and osteopathic treatment. Electric height adjustment from 52 to 96 cm takes just 16 seconds, driven by a low-maintenance German quality motor.
The two-tone silver and dark-grey frame hides all cables. A robust, misalignment-proof cross frame runs on maintenance-free dry plain bearings, and a central wheel-lifting system is integrated as standard. Hand-sewn, double-stitched premium upholstery 7 cm thick has an antimicrobial synthetic-leather cover, and the one-piece headrest with nose slot adjusts continuously from –90° to +30°.
PINO therapy beds are developed in-house and handcrafted in PINO's own production facilities in Germany. Prototypes of each new model undergo at least 22,000 full lifts under a continuous 160 kg load, and the safety precautions comply with the current specifications of the German Federal Institute for Drugs and Medical Devices (BfArM). The frame carries a 5-year warranty and the motor a 2-year warranty. Options include four headrest systems, an extra-long headrest with hinged back, two-part lying surfaces, an all-round control bar, 80 cm width and 10 cm comfort padding.
Key features
- Electric height adjustment 52-96 cm in 16 seconds
- Narrow frame and tapered foot area for ergonomic work
- Load capacity 250 kg
- Double-stitched 7 cm premium upholstery; antimicrobial imitation-leather upholstery, disinfectable with alcohol-free disinfectant
- Integrated central wheel-lifting system; hidden cables
- Handcrafted and made in Germany; 5-year frame / 2-year motor warranty
Used in
Medical and therapy equipment should be selected and used under the guidance of a qualified healthcare professional. Specifications are provided by the manufacturer and may change; please confirm before ordering.
Related products

Cleaning & Disinfection Technology
Cleaning & Disinfection Technology

Homecare & Hospital Beds
Homecare & Hospital Bed

PINO · 48130

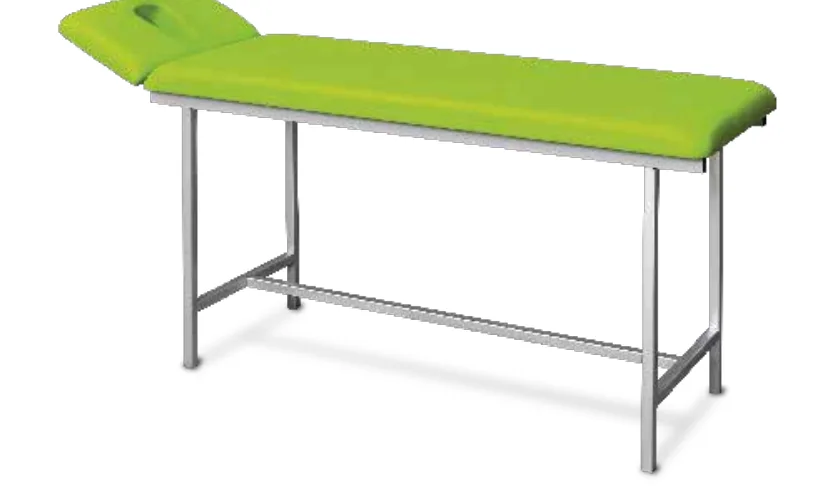

PINO BASIC Therapy Table
